Bare-board fabrication
PCB ManufacturingFrom Prototype to Production.
Rigid, multilayer, HDI, flexible, and specialty circuit boards for prototypes, pilot runs, and production. Send your Gerber files and board requirements to start your fabrication review.
Choose your service path
Explore PCB Manufacturing Services
PCB Prototyping Services
Validate a new circuit board before committing to a larger build. Coordinate fabrication data, material requirements, and inspection around the engineering decisions your prototype needs to resolve.
PCB Prototyping Services ↗Multilayer PCB Manufacturing
Manufacture multilayer circuit boards with layer construction, interconnections, and electrical requirements reviewed together. Give the fabrication team a defined stackup instead of relying on layer count alone.
Multilayer PCB Manufacturing ↗Rigid PCB Manufacturing
FR-4 and multilayer rigid PCB fabrication for control systems, instruments, and embedded hardware. Review the board outline, mounting, copper features, and assembly format before the build.
Rigid PCB Manufacturing ↗Flexible PCB Manufacturing
Flexible circuit board fabrication for space-constrained products and interconnections. Bring the electrical design together with the bend areas, stiffeners, connector interfaces, and installed shape.
Flexible PCB Manufacturing ↗Rigid-Flex PCB Manufacturing
Combine rigid board areas and flexible interconnections in one fabrication package. Review electrical connectivity and the final three-dimensional arrangement before releasing the manufacturing data.
Rigid-Flex PCB Manufacturing ↗HDI PCB Manufacturing
HDI circuit board fabrication for designs with compact routing and advanced via structures. Define the layer connections, dense component areas, and inspection requirements in the manufacturing package.
HDI PCB Manufacturing ↗Prototype to Production
First builds, pilot batches & repeat orders
Fabrication Review
Board data, stackup & manufacturing notes
Beyond Bare Boards
Component sourcing, PCBA & enclosures
Our PCB manufacturing capabilities
The Right Construction for Your Circuit
Explore the board technologies available for your next prototype or production build.
Rigid PCB
FR-4 boards for control systems, instruments, and everyday electronics. Coordinate layer construction, copper requirements, board outline, and panel format in one fabrication package.
Discuss This Board Type ↗Flexible PCB
Flexible interconnections for compact layouts. Define bend areas, stiffeners, connector interfaces, and the installed shape with your board files.
Discuss This Board Type ↗Rigid-Flex PCB
Rigid sections and flexible interconnections in one construction. Review the stackup, transition zones, component clearances, and assembly sequence together.
Discuss This Board Type ↗HDI PCB
High-density interconnect constructions for compact designs. Include blind and buried via requirements, critical pad geometry, and the intended layer connections.
Discuss This Board Type ↗RF & High-Frequency PCB
Board constructions for RF and high-speed signals. Specify the laminate, controlled-impedance targets, copper geometry, and critical signal layers.
Discuss This Board Type ↗Metal-Core PCB
Metal-based constructions for thermal management. Include the substrate, insulation, mounting, and heat-transfer requirements.
Discuss This Board Type ↗Ceramic PCB
Ceramic substrates for designs with demanding thermal and insulation requirements. Share the material specification and the electrical and mechanical constraints.
Discuss This Board Type ↗Process capabilities
PCB Manufacturing Specifications
Compare fabrication capabilities for mass production and prototype builds, including HDI structures, drilling, registration, and impedance control.
| Specification | Mass Production | Sample / Prototype |
|---|---|---|
| Layer Count | 4–16 layers | 4–24 layers |
| Board Thickness | 0.6–3.2 mm | 0.4–6.0 mm |
| HDI Stackup | Up to 4+N+4 | Any-layer interconnection |
| Minimum Laser Hole | 0.10 mm (4 mil) | 0.075 mm (3 mil) |
| Laser Drilling | CO₂ laser | CO₂ laser |
| Glass Transition Temperature (Tg) | 170°C | 170°C |
| Hole Copper Thickness | 12–18 µm | 12–18 µm |
| Impedance Tolerance | ±10% | ±7% |
| Layer Registration | ±3 mil | ±2 mil |
| Solder Mask Registration | ±2 mil | ±1 mil |
| Minimum Trace / Space | 2.5 / 2.5 mil | 2.5 / 2.5 mil |
| Minimum Annular Ring | 2.5 mil | 2.5 mil |
| Minimum Through-Hole Diameter | 0.20 mm (8 mil) | 0.15 mm (6 mil) |
| Minimum Blind Via Diameter | 4 mil | 3 mil |
| Minimum Dielectric Thickness | 3 mil | 2 mil |
| Minimum Pad Size | 12 mil | 10 mil |
| Blind Via Aspect Ratio | 1:1 | 1.2:1 |
Specifications depend on the selected material, stackup, and board construction. The applicable combination of requirements is confirmed during fabrication review.
Quality control
Checks at Every Manufacturing Stage
Connect the approved design data with the inspection criteria for your finished boards.
Pre-Production
Confirm the Manufacturing Inputs
Review Gerber and drill data, board outline, stackup, material specification, and fabrication notes. Resolve manufacturing questions before release.
In-Production
Check Critical Fabrication Features
Define the required checks for routing, holes, layer registration, copper features, solder mask, and surface finish against the approved board specification.
After-Production
Verify and Prepare for Delivery
Complete the agreed electrical, dimensional, and appearance checks. Confirm documentation, board identification, and protective packaging.
Applications
PCB Manufacturing for Your Product
Match board construction and inspection requirements to the way your product will be used.
01
Industrial Controls
Control boards, machine interfaces, and automation electronics.
02
Connected Devices
Sensor boards, gateways, and compact embedded hardware.
03
Instruments
Measurement, monitoring, and electronic test equipment.
04
Robotics
Motion controllers, interfaces, and system interconnections.
05
Consumer Electronics
Device control boards and compact electronic assemblies.
06
Power Electronics
Board constructions with thermal and power-routing requirements.
Why 6CNC Electronics
Boards, Assembly & Mechanical Parts.
One Coordinated Project.
Engineering Before Production
Clarify stackup, board geometry, panel format, and fabrication notes before moving into the build.
Continuity Across Builds
Keep the approved files and specification aligned as your project moves from prototypes into repeat orders.
Electronic & Mechanical Integration
Coordinate bare boards with components, PCB assembly, mounting details, and custom enclosures.
Board & assembly showcase
Explore the Manufacturing Path
PCB fabrication, production panels, and populated assemblies.
Bare-Board Fabrication

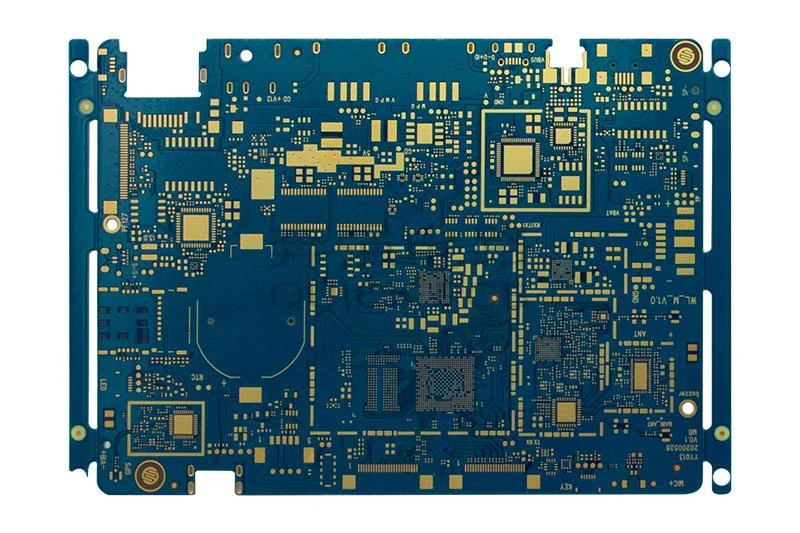

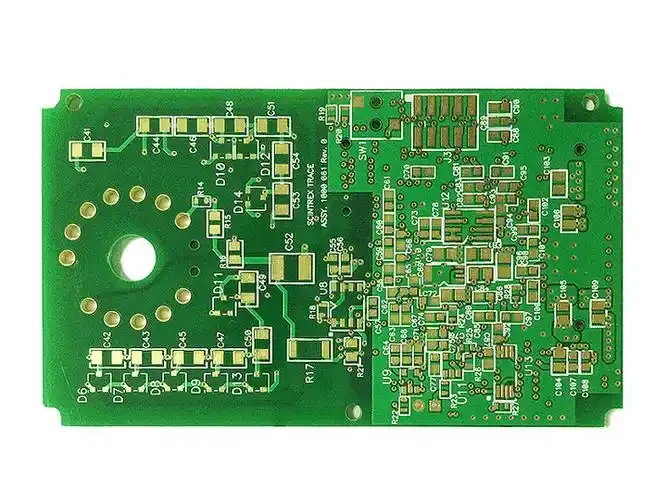

Circuit board copper features, drill patterns, and component footprints.
Panelized Circuit Boards
Board layout and panel format coordinated with downstream handling and assembly.
From PCB to PCBA
Continue into component sourcing and assembly within the same project.
Prepare your inquiry
What to Send for a PCB Quote
A complete fabrication package helps us clarify your requirements before production.
01
Design Files
- Gerber fabrication data
- NC drill files
- Board outline and fabrication drawing
02
Board Specifications
- Material, stackup, and thickness
- Copper weight and surface finish
- Impedance, tolerances, and special notes
03
Order Requirements
- Quantity and production stage
- Single-board or panel delivery
- Target delivery date and inspection needs
From files to finished boards
Your PCB Manufacturing Workflow
Submit Your Files
Email the fabrication package, quantity, and requested delivery date.
Review & Confirm
Resolve file questions and confirm the specification, pricing, and production plan.
Fabricate & Inspect
Manufacture the boards and complete the agreed checks and documentation.
Pack & Ship
Prepare protective packaging and coordinate delivery of your finished boards.
One coordinated manufacturing path
Need Assembled Boards
or a Complete Product?
Continue from bare PCB fabrication into BOM sourcing, SMT and through-hole assembly, firmware programming, functional testing, and custom enclosures.
Explore PCB Assembly ↗
PCB manufacturing FAQ
Before You Place Your Order
What is included in PCB manufacturing?
This service covers bare circuit board fabrication. Component sourcing, soldering, programming, and product assembly can be included as additional services.
Can you support prototype and production quantities?
Yes. Send your initial quantity and anticipated repeat demand with your inquiry so we can plan for prototypes, pilot batches, or production orders.
Can you manufacture flexible and specialty boards?
Our PCB offering includes flexible, rigid-flex, HDI, high-frequency, metal-core, and ceramic options. Include the material and construction requirements for review.
How is the PCB lead time confirmed?
The production schedule depends on the board technology, material, fabrication requirements, quantity, and current availability. Your quotation will confirm the agreed schedule.
Can you review my files before fabrication?
Yes. Include the fabrication drawing and manufacturing notes with your Gerber and drill files. We clarify manufacturing questions before production.
Start your next board build
Get Your PCB
Manufacturing Quote
Send your Gerber and drill files, board specification, quantity, and target delivery date.
Please attach your fabrication files to the email.
